Using APKLab to Enable DevMode in React Apps

Enable ReactNative Android Debug Utilities in Production APKs

During this process, we will enable the React’s Native Dev Menu (Bridge) allowing us to explore the JSIExecutor runtime, alongside the Hermes runtime (if applicable).

Using the previously extracted and analyzed APK, similarly, we will start decompiling it via VSCode & APKLab extension, so we could edit the Java and Smali code more natively and recompile the final build of patched/signed APK.

  1. Download & Install Visual Studio Code

Either download the corresponding Visual Studio Code installation file for your HostOS, or if you are on macOS you can use homebrew:

$ brew install --cask visual-studio-code
# ...
  1. Open Visual Studio Code & Install APKLab Extension

The APKLab extension aids reverse engineering process directly in VS Code as a sort of Workbench. It is publicly available and installable via VSCode Marketplace.

HostOS requirements are as following:

  • JDK 8+: Run java --version in Terminal to check your JDK Version
  • quark-engine >=21.01.6: Run quark in Terminal to check the version, check official docs
  • adb: Run adb devices in Terminal, if not found check this guide

Click Install in VSCode’s Extension: APKLab Tab or in the VSCode Marketplace to install the extension.

  1. Open the APK using VSCode’s APKLab

Open a new VSCode Window ( ⌘ + ⇧ + N ) and then trigger Command Palette in the new window using ⌘ + ⇧ + P keyboard shortcut.

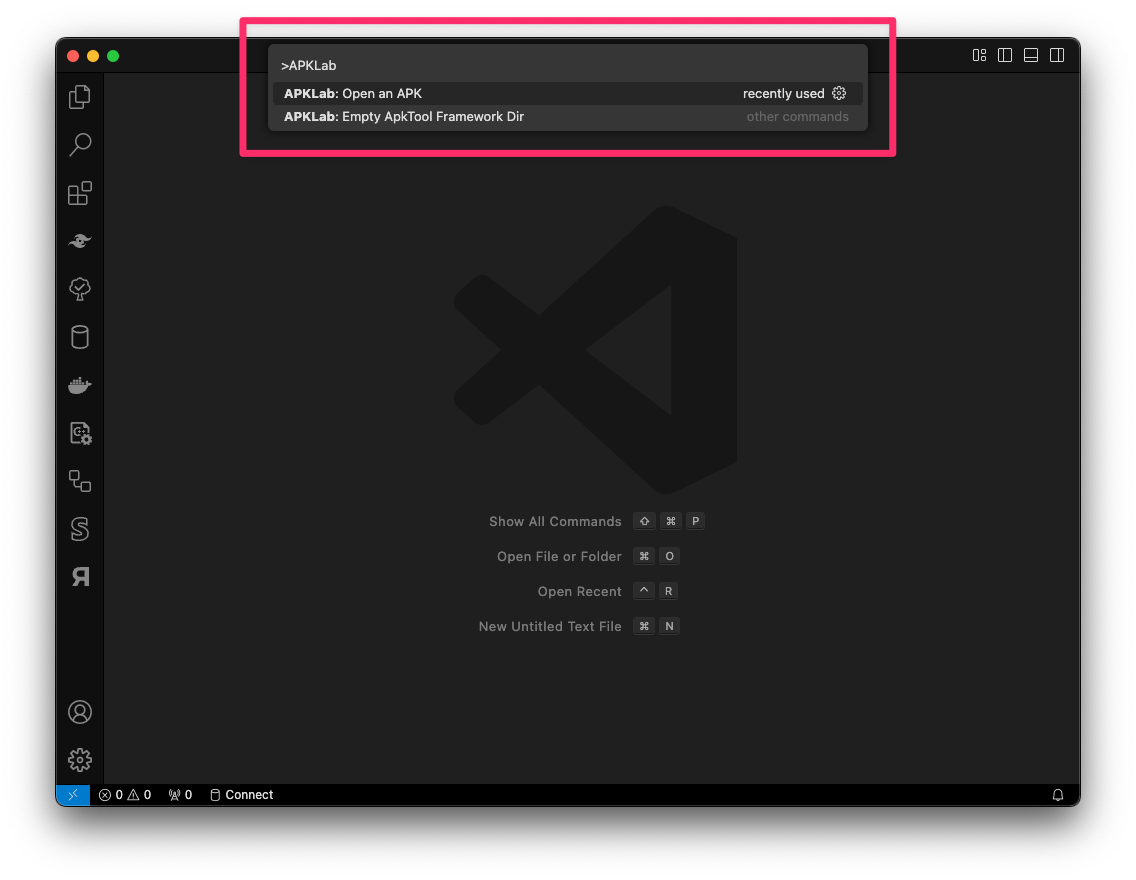

In the Command Palette enter “APKLab: Open an APK” as shown below:

Visual Studio Code - APKLab - Open APK Visual Studio Code - APKLab - Open APK

Select your APK file and when asked for decompilation details, use check the following features:

  • Check decompile_java [jadx]
  • Check --only-main-classes [apktool]
  • Check --deobf [jadx]
  • Leave all other flags unchecked:
    • quark_analysis, --no-src, --no-res, --force-manifest, --no-assets, --no-debug-info, --show-bad-code

Start APKLab analysis once ready and wait for the process to finish fully - watch the Output pane in VSCode for progress details. Once completed, the Explorer pane in VSCode should contain decompiled Java code of the selected APK, the smali directory containing decompiled native JVM smalicode of all *.dex classes (ie. custom app. codebase), and apktool.yml file describing all *[re/de]*compilation flags.

Besides, the APKLab Workbench add-on will initiate a .git repository, which is handy since it tracks any changes/breaks you may trigger during the patching process.

  1. Patching the APK to enable ReactNative Debugging

Start by expanding smali_classes[...] directoris, which due to flag we used earlier (ie. --only-main-classes) provides mostly custom codebase of the targeted Android application. In my example, I have (4x) smali_classes directories indicated by their numbers [1|2|3] and one without number indicator. If you remember earlier while using Jadx-GUI, the Summary tab showed the classes.dex, classes2.dex, which are those decompiled smali decompilation bytecodes:

$ cd /path/where/vscode/apklab/decompiled/the/code
$ ls -la | grep "smali*"
drwxr-xr-x    6 xxxxxxx  staff    192 Feb  5 01:17 smali            # classes.dex
drwxr-xr-x    3 xxxxxxx  staff     96 Feb  5 01:17 smali_classes2   # classes2.dex
drwxr-xr-x    6 xxxxxxx  staff    192 Feb  5 01:17 smali_classes3   # classes3.dex
drwxr-xr-x   14 xxxxxxx  staff    448 Feb  5 01:17 smali_classes4   # classes4.dex

Traverse through each of the smali* directory and its relevant classes and try to identify where the patch should be placed.

Inside the smali/ I haven’t found any interesting classes, methods or values to patch therefore I will skip it. In other examples, it might be possible that only one classes.dex exists in APK therefore it will be the only application’s custom codebase you may find (that is, in smali/ directory).

Inside smali_classes2/com/swmansion/getuserhandler/ directory, in my APK there is a BuildConfig.smali file containing the following Smali Bytecode:

.class public final Lcom/swmansion/gesturehandler/BuildConfig;
.super Ljava/lang/Object;
.source "BuildConfig.java"

# static fields
.field public static final BUILD_TYPE:Ljava/lang/String; = "release"
.field public static final DEBUG:Z = false
.field public static final IS_NEW_ARCHITECTURE_ENABLED:Z = false
.field public static final LIBRARY_PACKAGE_NAME:Ljava/lang/String; = "com.swmansion.gesturehandler"
.field public static final REACT_NATIVE_MINOR_VERSION:I = 0x4c

# direct methods
.method public constructor <init>()V
    # ... [REDACTED] ...
.end method

Although this component (class) is not part of the application’s custom Android codebase, we can still see a declared static const DEBUG set to false. While still in VSCode, change this DEBUG value to true, like so:

# ...

# static fields
.field public static final DEBUG:Z = true

# ...

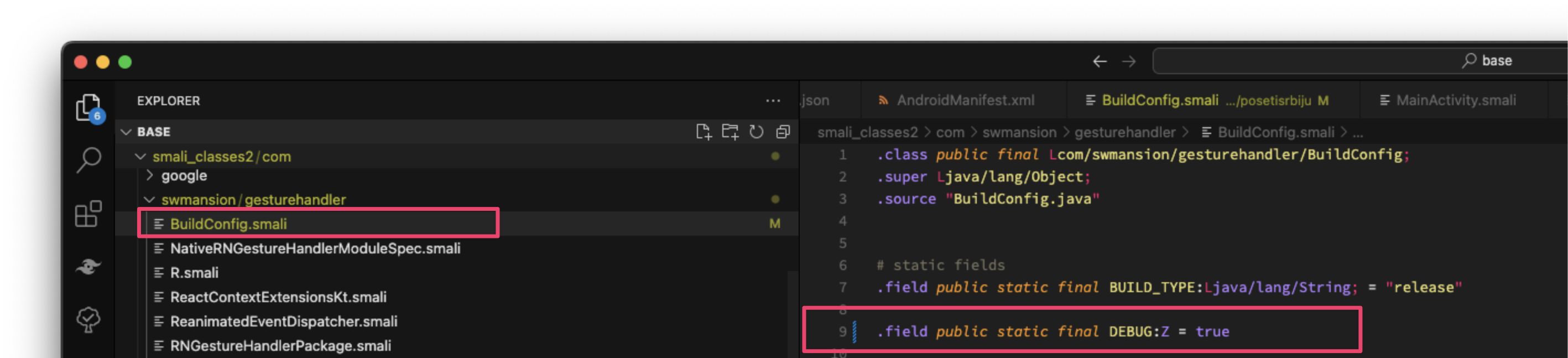

Once the line has been changed, VSCode will insert an indicator on the changed line since APKLab is awesome and it track changes via initialized *git repository. Check below screenshot for descriptive representation of this simple patch:

Visual Studio Code - APKLab - Patching Smali Bytecode Visual Studio Code - APKLab - Patching Smali Bytecode

Similarly, we will look for other *.smali decompiled bytecode that will help us enable ReactNative Debugging. In my APK example, inside the smali_classes4/ directory, I have very interesting subdirectory, located in smali_classes4/com/example/appname. Since I know my targeted app. package is com.example.appname I’m sure this is relevant codebase of the targeted package/application.

Below is the directory/file content of it:

$ cd /path/where/vscode/apklab/decompiled/the/code
$ ls -la smali_classes4/com/example/ | grep ".smali"
-rw-r--r--   1 xxxxxxx  staff   728 Feb  5 01:21 BuildConfig.smali
-rw-r--r--   1 xxxxxxx  staff  2863 Feb  5 01:17 MainActivity.smali
-rw-r--r--   1 xxxxxxx  staff  3850 Feb  5 01:24 MainApplication$reactNativeHost$1.smali
-rw-r--r--   1 xxxxxxx  staff  3731 Feb  5 01:17 MainApplication.smali
-rw-r--r--   1 xxxxxxx  staff  3629 Feb  5 01:17 R$drawable.smali
-rw-r--r--   1 xxxxxxx  staff   586 Feb  5 01:32 R$integer.smali
-rw-r--r--   1 xxxxxxx  staff   963 Feb  5 01:17 R$mipmap.smali
-rw-r--r--   1 xxxxxxx  staff   527 Feb  5 01:17 R$string.smali
-rw-r--r--   1 xxxxxxx  staff   580 Feb  5 01:17 R$style.smali
-rw-r--r--   1 xxxxxxx  staff   531 Feb  5 01:17 R.smali

Visiting each of the identified *.smali files inside this directory will provide you further information about the targeted application, and may help you enlarge attack surface. For now, the most interesting to us are the BuildConfig.smali and MainApplication$reactNativeHost$1.smali.

The filenames on other APK targets may be different but they should usually correspond to that of react-native framework and its’ compiled builds. Lets start anylizing BuildConfig.smali file first.

BuildConfig: Analysis of BuildConfig.smali Smali Bytecode File

The default and decompiled BuildConfig.smali file contains the following code inside it:

.class public final Lcom/example/app/BuildConfig;
.super Ljava/lang/Object;
.source "BuildConfig.java"

# static fields
.field public static final APPLICATION_ID:Ljava/lang/String; = "com.example.name"
.field public static final BUILD_TYPE:Ljava/lang/String; = "release"
.field public static final DEBUG:Z = false
.field public static final IS_HERMES_ENABLED:Z = true
.field public static final IS_NEW_ARCHITECTURE_ENABLED:Z = false
.field public static final VERSION_CODE:I = 0x1f
.field public static final VERSION_NAME:Ljava/lang/String; = "1.1"

# direct methods
.method public constructor <init>()V
    .locals 0

    .line 6
    invoke-direct {p0}, Ljava/lang/Object;-><init>()V

    return-void
.end method

As shown above, there are some interesting DEBUG & HERMES flags defined in this files. Maybe we could change these to our values which can be beneficial to enable the ReactNative DevTools. Lets do that while we are at it, change the following constants and their values:

# ...

# static fields
.field public static final DEBUG:Z = true
.field public static final IS_HERMES_ENABLED:Z = false

MainApplication/NativeHost: Analysis of MainApplication$reactNativeHost$1.smali Smali Bytecode File

The file contents of the MainApplication$reactNativeHost$1.smali contains large number of decompiled code from my APK, therefore, the code below is used just to provide an overview and summary of the decompiled data:

.class public final Lcom/example/app/MainApplication$reactNativeHost$1;
.super Lcom/facebook/react/defaults/DefaultReactNativeHost;
.source "MainApplication.kt"

# annotations
# .annotation system Ldalvik/annotation/EnclosingMethod; ...

# direct methods
# .method constructor <init>(Lcom/example/app/MainApplication;)V ...

# virtual methods
# .method protected getJSMainModuleName()Ljava/lang/String; ...
# .method protected isNewArchEnabled()Z ...

# instance fields
.field private final isHermesEnabled:Z
.field private final isNewArchEnabled:Z

.method public getUseDeveloperSupport()Z
    # ...
    const/4 v0, 0x0
    return v0
.end method

.method protected isHermesEnabled()Ljava/lang/Boolean;
    # ...
    iget-boolean v0, p0, Lcom/example/app/MainApplication$reactNativeHost$1;->isHermesEnabled:Z
    invoke-static {v0}, Ljava/lang/Boolean;->valueOf(Z)Ljava/lang/Boolean;
    move-result-object
    return-object v0
.end method

Lets try to make sense of this Smali Bytecode;

  • The .class public final MainApplication$<...>.smali line indicates that this is a final MainApplication class, extending the base class described in MainApplication.smali with additional ReactNativeHost interfaces and conformings
  • Then we have some annotations, alongside some direct/virtual methods we are not interested in
  • Then, again, similarly to previous changes, we have instance fields, and while these are not static fields (ie. const), they are instead class fields (ie. variables)
  • Finally, we have these two interesting functions defined: getUseDeveloperSupport() and isHermesEnabled()
    • The getUseDeveloperSupport() Method: Sets v0 register to 0x0 (FALSE) and returns it
    • The isHermesEnabled() Method: Retrieves the static field value of the parent class (ie. instance fields IS_HERMES_ENABLED) and place the BOOL(IS_HERMES_ENABLED) inside v0 register, finally returning it

Therefore, we need to patch getUseDeveloperSupport() method to always have 0x1 (ie. TRUE) as retval. The method after patching should look like this:

.method public getUseDeveloperSupport()Z
    .locals 1
    const/4 v0, 0x1         # patched to 0x1
    return v0
.end method

R/Integer: Analysis of R$integer.smali Smali Bytecode File

Looking further into other .smali files inside the package directory, there is a file R$integer.smali which besides other code, containined the following line:

.class public final Lcom/example/app/R$integer;
.super Ljava/lang/Object;

# ...

# static fields
.field public static react_native_dev_server_port:I = 0x7f0b0037

This static constant value declared at compile-time presumably allows developer to set ReactNative DevServer Port, since the :I suffix indicates an Integer value. Further research on the Interwebz confirmed this and therefore it’s of our interest to have ReactNative DevTools enabled. We need to find where this value is provided, and we might do that by searching in all files from VSCode using either:

  • 0x7f0b0037 (Hexadecimal Representation)
  • react_native_dev_server_port (Name Representation)

Searching for the value using 0x7f0b0037 did not provide the expected Int-val anywhere in the results, but it confirmed that this React Native DevServer Port is used alongside React Native library (ie. in smali_classes3/com/facebook/react/R$integer.smali).

Searching for the value using react_native_dev_server_port shown a match which defines this constant value, specifically it has been found in res/values/integers.xml file, as shown below:

$ cat res/values/integers.xml | grep react_native_dev_server
# <integer name="react_native_dev_server_port">8081</integer>

Therefore, we can conclude that the app. expects React Native DevServer to listen on PORT:8081. We can add this comment in our original R$integer.smali file for further reference:

.field public static react_native_dev_server_port:I = 0x7f0b0037    # reactnative dev-server port (8081)
  1. Recompile APK with New Patches

Finally, we can recompile our patches into a new APK that. This can all be done from within the VSCode using APKLab Workbench add-on, which automatically adds correct keystore signature and sign all the bundled files in the APK, allowing the final APK to be installed on any Android device.

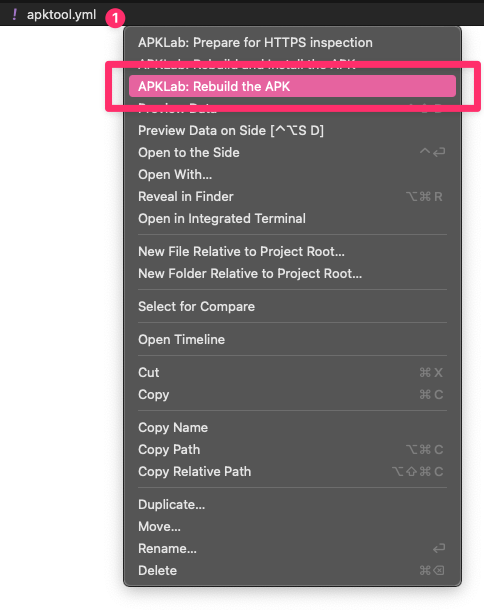

To compile new APK, right-click on the apktool.yml file in VSCode “Explorer” panel, and selecting “APKLab: Rebuild the APK”.

Visual Studio Code - APKLab - Rebuild the APK Visual Studio Code - APKLab - Rebuild the APK

Wait for the APKLab to finish recompilation process and then use adb install command to install the patched APK. The patched and signed APK ready for distribution should be found in the ./dist/[filename].apk alongside your APKLab decompilation folder:

$ adb install [...]/dist/base.apk
# Success

Another option is to use APKLab: Rebuild and Install the APK from the contextual menu but it might now always work if multiple adb devices are present.

Interacting with patched ReactNative Debug Server

Once we followed all the steps described in Enable ReactNative Android Debug Utilities in Production APKs, we can try and see if our patching works and the ReactNative Dev/Debug is enabled and usable. Having the patched APK installed, open the targeted app. from the running emulator or the physical device.

Once the application is started and the MainActivity is running, use the input keyevent 82 AndroidOS tty-command to trigger the ReactNative Dev Tools, as described in official documentation:

$ adb shell input keyevent 82

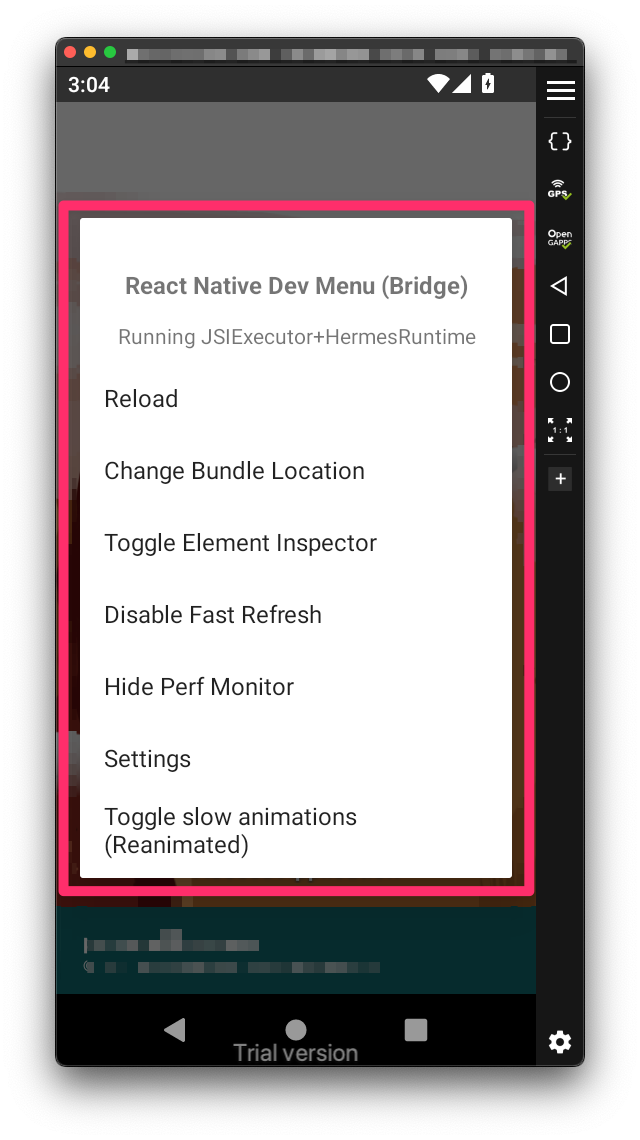

Once this keyevent code is sent, a pop-up should show overlaying the targeted application, looking like this:

Android Device - ReactNative - DevMenu Bridge Popup Android Device - ReactNative - DevMenu Bridge Popup
