Cluster Conversion

It’s possible to convert LOW instrument cluster to HIGH cluster by repinning the connectors and making some adjustments, based on the originally provided pinouts and cluster connectors.

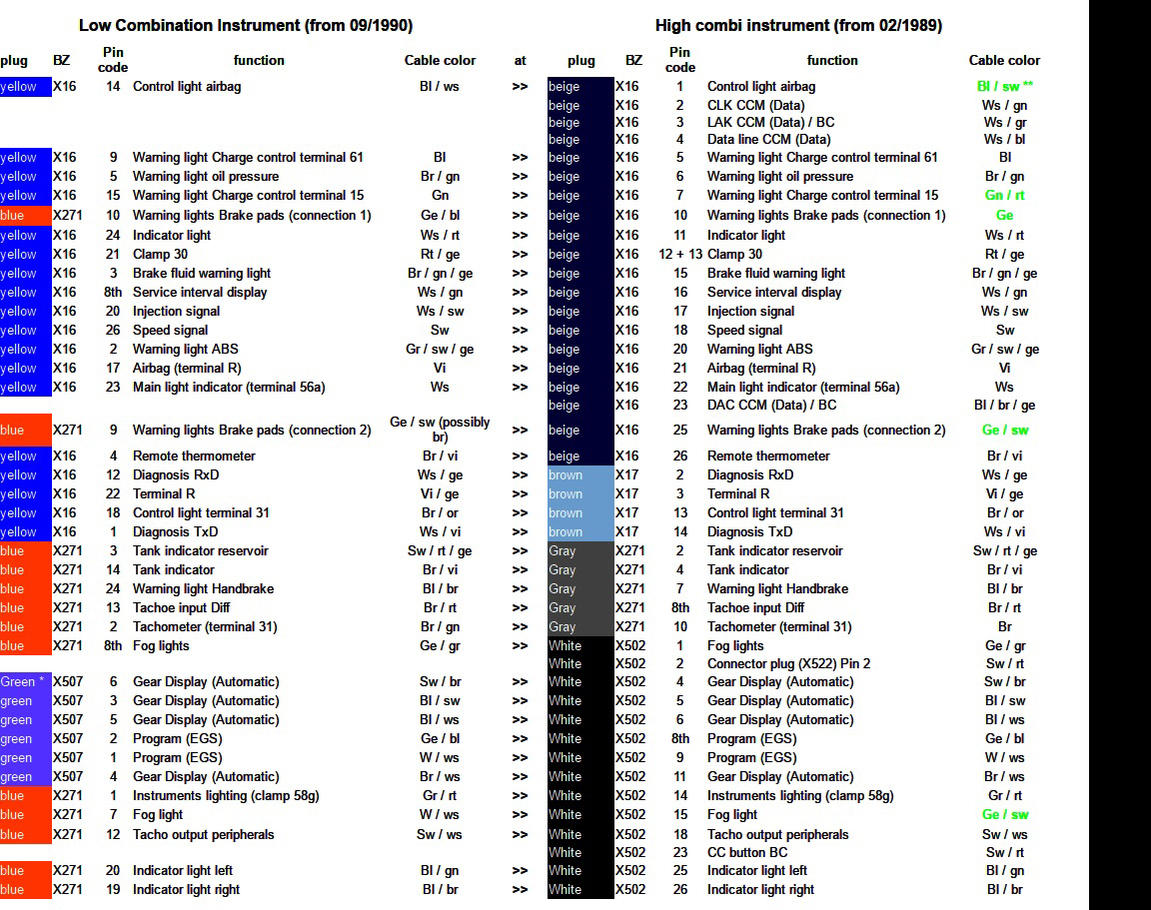

LOW vs HIGH Instrument Cluster Conversion (Fig.1) LOW vs HIGH Instrument Cluster Conversion (Fig.1)
LOW vs HIGH Instrument Cluster Conversion (Fig.2) LOW vs HIGH Instrument Cluster Conversion (Fig.2)
Instrument Cluster X16 Connector (Fig.1) Instrument Cluster X16 Connector (Fig.1)

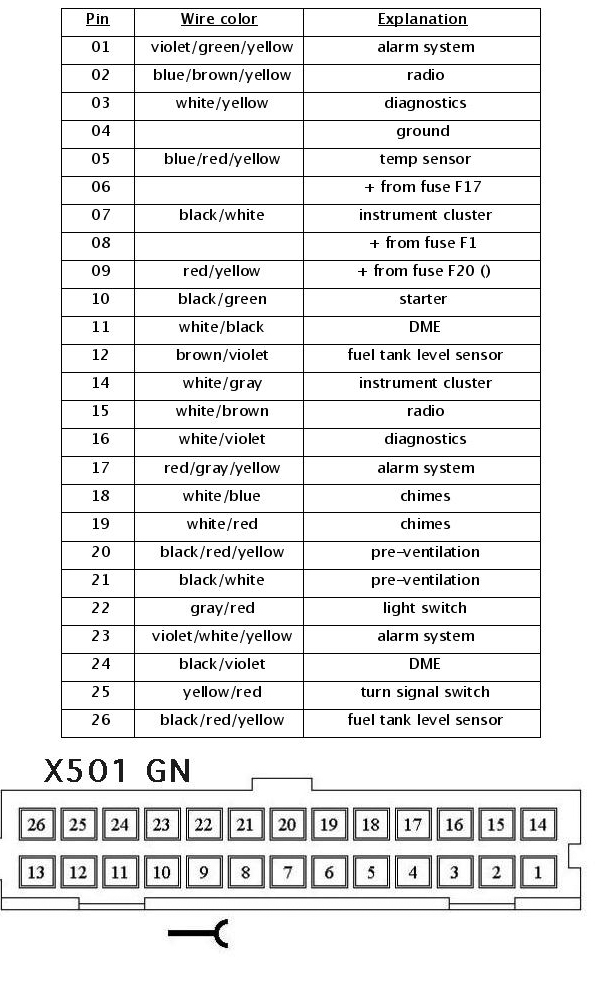

Instrument Cluster X501 Connector (Fig.2) Instrument Cluster X501 Connector (Fig.2)
